Details of EN10219 LSAW Steel Pipe We Can Supply:
Manufacture: LSAW(JCOE) Steel pipes. Size: O.D.: 323.8~1500mm W.T.: 6~40mm. Grade: S275J0H, S275J2H, S355J0H, S355J2H, S355J2H, etc. Length: 6M or specified length as required. Ends: Plain End, Beveled End.Chemical Composition:
| Chemical composition-wall thickness≤40mm | ||||||||
| Steel Grade | % by mass, maximum | |||||||
| Steel Name | Steel Number | C | Si | Mn | P | S | N | |
| ≤40 | ＞40≤120 | |||||||
| S355J0H | 1.0547 | 0.22 | 0.22 | 0.55 | 1.60 | 0.035 | 0.035 | 0.009 |
Mechanical Properties:
| MECHANICAL PROPERTIES OF LSAW(JCOE) STEEL PIPE W.T ≤40mm | |||||||||
| Steel Grade | Minimum Yield Strength (Mp) | Tensile Strength (Mp) | Minimum Elongation % | Minimum Impact J | |||||
| Specified Thickness (mm) | Specified Thickness (mm) | Specified Thickness (mm) | At test temperature of | ||||||
| Steel Name | Steel Number | ≤16 | ＞16≤40 | ≤3 | ＞3 ≤40 | ≤40 | -20℃ | 0℃ | 20℃ |
| S335J0H | 1.0547 | 355 | 345 | 510-580 | 470-630 | 20 | - | 27 | - |
Dimension Tolerance of OD and W.T:
| Specification | OD≤2500mm W.T≤120mm | ||
| OD | ±1％ Minimum:±0.5mm，Maximum:±10mm | ||
| W.T | -10％ | ||
| Weight | ±6％ | ||
| Length | Length Scope | 4m≤L≤6m | ±500mm |
| Fixed Length | 4m≤L≤6m | +10mm | |
| ＞6m | +15mm | ||
| Height of weld bead for Submerged arc welded hollow sections | When W.T≤14.2,the weld bead height≤3.5 When W.T ＞14.2，the welded bead height≤4.8 | ||
Ordering Information:
1. Quantity ( feet,meters,or number of lengths ). 2. Name of material( LSAW steel pipe ). 3. Grade. 4. Manufacture. 5. Size ( outside or inside diameter, normal wall thickness ). 6. Length ( specific or random ). 7. Optional requirements.Packing for EN10219 S355J0H LSAW(JCOE) Steel Pipe:
● Bare pipe or Black / Varnish coating ( customized); ● In loose; ● Both ends with end protectors; ● Plain end , bevel end; ● Marking.Marking:

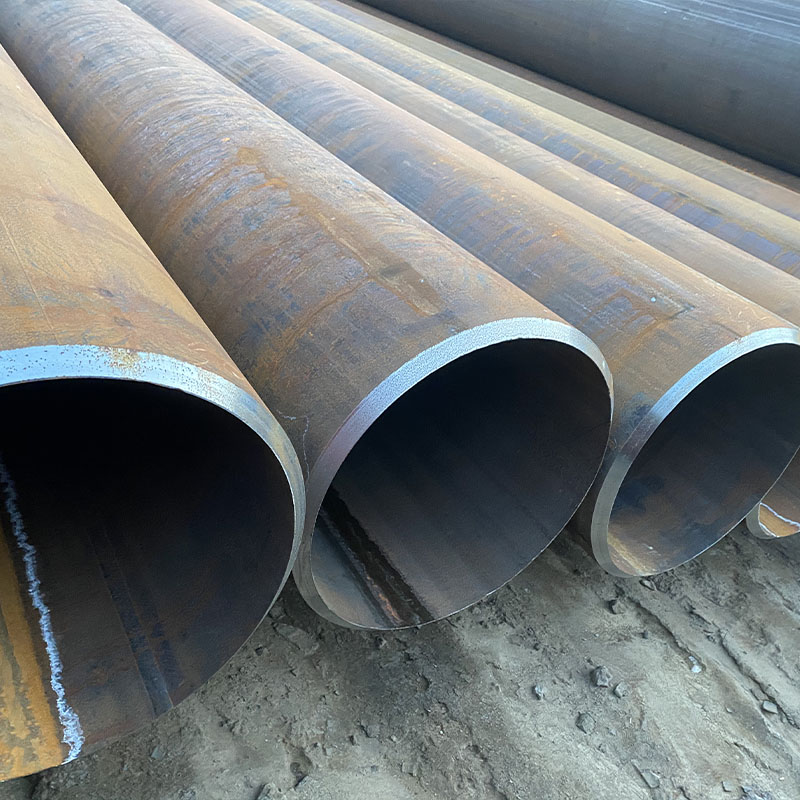

1. The steel designation, e.g. EN10219-S355J0H. 2. The manufacturer's name or trademark. 3. Size( OD, W.T, length ). 4. Grade. 5. Type of pipe( F, E, or S ). 6. Heat Number. 7. Any additional information specified in the purchase order.Product Display:
